Athlon Helos BTR GEN2 6-24×56 APRS6 FFP IR MIL Rifle Scope

• Magnification: 6-24x
• Objective Lens Diameter: 56 mm
• Reticle: APRS6 FFP IR MIL, Glass Etched
• Surface Finish: Matte
• Lens Coating: Wide Band Fully Multi-Coated
• Extra Coating: Xtra Protective Coating
• Tube Material: Aircraft Grade Aluminium
• Tube Diameter: 34 mm
• Eye Relief: 3.7 inches
• Field of View @100 yards: 19.9-5.12 feet
• Click Value: 0.1 MIL
• Adjustment range per rotation: 10MIL
• Total Elevation Adjustment: 29MIL
• Total Windage Adjustment: 25MIL
• Turret Style: Exposed
• Parallax Adjustment: Side Focus – 10 yards to infinity
• Purging Material: Argon
• Length: 14.3 inches
• Weight: 34.5 ounces

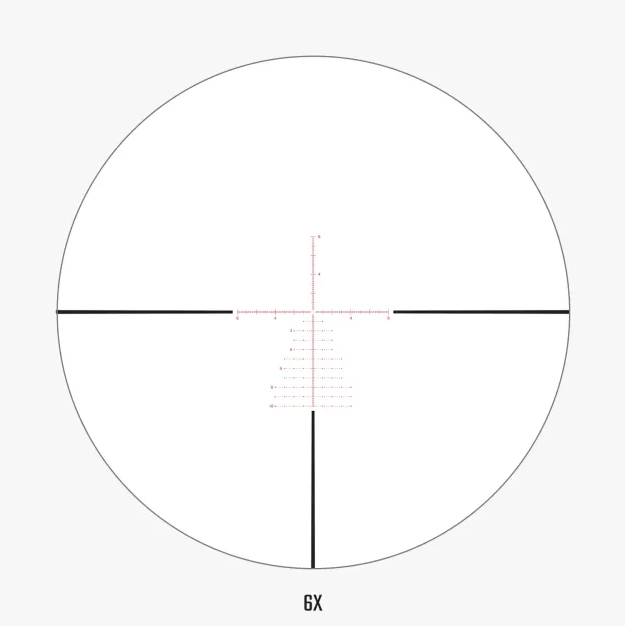

First Focal Plane Reticle:

• The first focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.

Locking Turrets:

• The locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to the next during your competition or putting them away for your next hunting trip.

Illuminated Reticle:

• The illuminated reticle provides greater visibility during dusk and dawn and another low ambient light environment.

Etched Glass Reticle:

• Reticle etched on the glass provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Advanced Fully Multicoated:

• Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

Precision Zero Stop:

• The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even if you are turning it in pitch-dark.

Heat Treated One-Piece Tube Construction:

• The heat-treated one-piece tube gives the scope extra strength over multi-piece tubes. A one-piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof:

• Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fogproof:

• Fogproof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Shockproof:

• Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged:

• Argon Purging uses inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability.

• Athlon Helos BTR GEN2 6-24×56 APRS6 FFP IR MIL Rifle Scope.
