Hawke Airmax 30 WA SF 8-32x50 SFP 0.1MRAD AMX IR Rifle Scope
- Capped Target Turrets
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Illumination
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
NEW 2021 Model
Specialist scopes designed by airgunners for airgunners!
- Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Nitrogen purged. Shockproof. Waterproof. Fog proof.
- All caliber rated.
- Hawke No-Fault Lifetime Warranty.

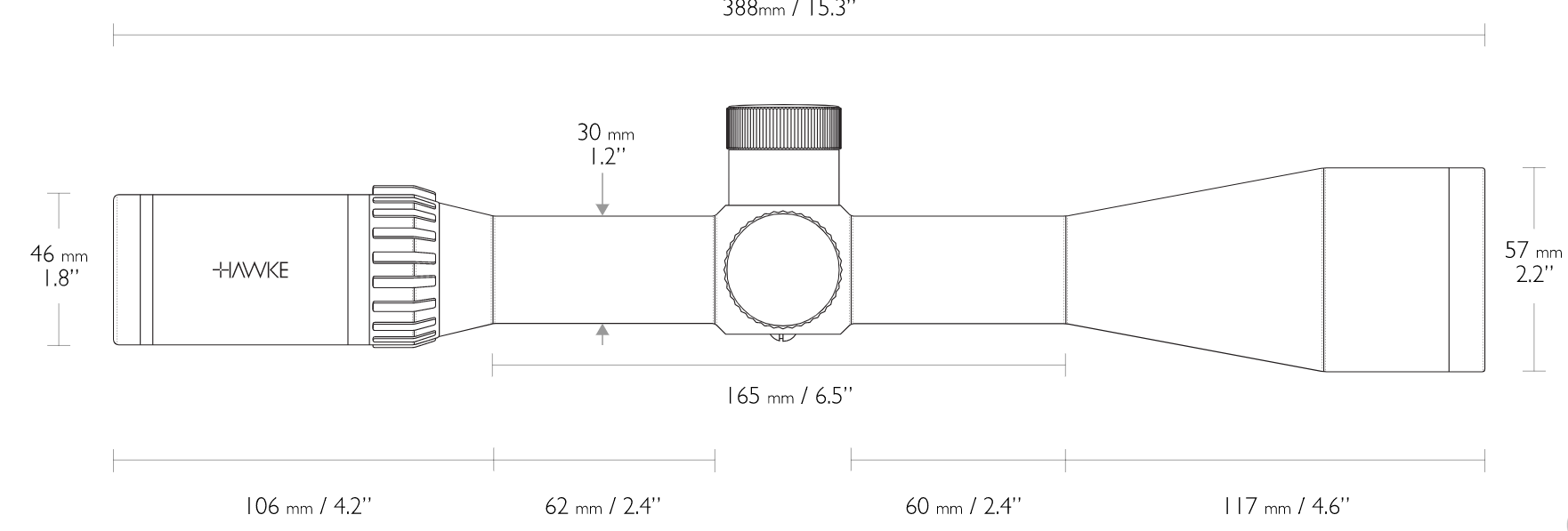

- Length: 388mm/15.3"
- Weight: 778g/27.5oz
- Eye relief: 102mm/4"
- Focus/Parallax: Side Focus 9m - ∞/10yds - ∞
- Field of View: 5.4-1.3m @100m/16.1-4.0ft @100yds
- Exit Pupil: 6.3-1.6mm/0.25-0.06"
- Chassis: 30mm Mono-tube
- Optical System: 8-32x
- Objective Diameter: 50mm
- Illumination: Red (6 Levels With Off Positions In-Between)
- Reticle: AMX IR
- Elevation Increment: 1⁄10 MRAD
- Elevation Adjustment Range: 16 MRAD
- Windage Increment: 1⁄10 MRAD
- Windage Adjustment Range: 16 MRAD
- Material: Aluminium
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 16 Layers
- Power Selector Style: Knurled Posi-Grip
- Focal Plane: Second Focal Plane (SFP)
- Turret Caps: Yes
- Turret Type: Capped Target Turrets
- Capped Target Turrets
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Illumination
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
AMX Reticle:
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- HAWKE Airmax 30 WA SF 8-32x50 AMX IR Reticle Rifle Scope
-
Instruction Manual
-
Reticle Booklet
-
Riflescope Alignment Booklet
-
Lens Cloth
-
4" Sunshade
-
Metal Flip-Up Lens Covers
-
Flip-Up Removal Tool
-
4" Sidewheel
-
Hex Key
-
CR2032 Battery
- Hawke No-Fault Lifetime Warranty
