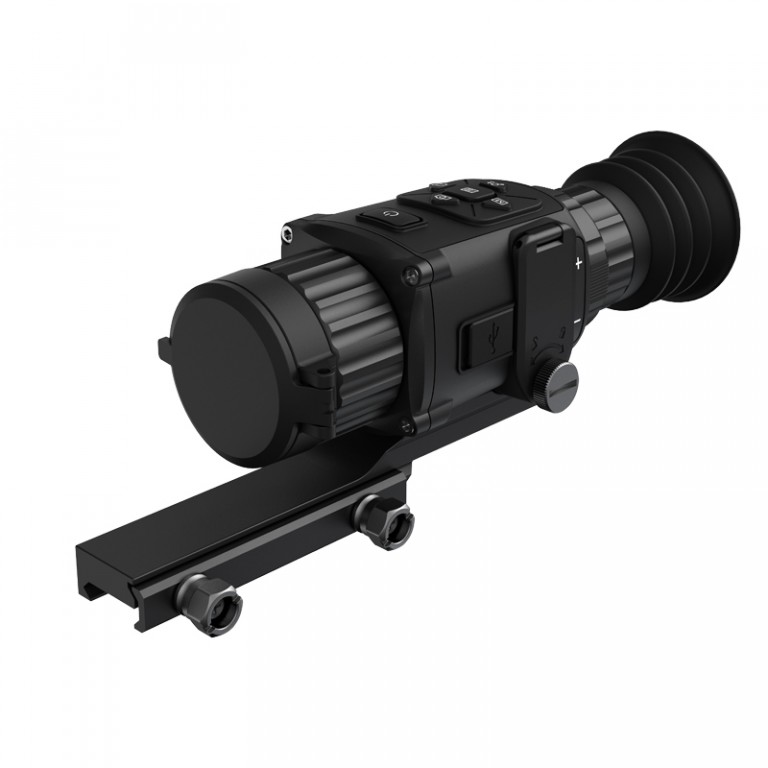

HIKMICRO Thunder 2.1x 35mm 35mK 384x288 17um Smart Thermal Weapon Scope
The Thunder Thermal Weapon Scope is a very flexible and innovative package from HIK Micro.
The Thunder can be used in three configurations; a Thermal Weapon Scope, a Handheld Thermal Monocular and a Thermal Front Add-On (additional Lens System required).
The Weapon Scope is supplied with a 2.1x magnification lens system and a detection distance of 1235m. Add the Picatinny rail and you're ready to attach to your rifle. Simply detach the Picatinny rail and the Thunder can be used as a Thermal Monocular.
Using the highly sensitive, SUB 35mK NETD, 384x288 17µm Thermal Sensor, the HIK Micro Thunder Thermal Weapon Scope delivers industry-leading detail and clarity in a compact and rugged package. The software built into the Thunder Weapon Scope is easy to use and would be instantly recognisable to anyone who has used a HIK Micro Thermal Monocular.
The Thunder shares many of the features including the choice of 4 colour palettes, Hot Track, and WiFi, in order to stream, record and control from your phone, plus NEW and exciting features like 'Picture-in-Picture', 5 reticle choices and in with the option of 3 colours.
...
NEW HIK Micro Thunder Firmware Update
Upgrade the performance of your Thunder with this important update! [CLICK HERE]
Please note Thunder units bought from the 1st of June 2021 have already been updated with this Firmware.
HIK Micro Thunder 35mm 35mK Smart Thermal Weapon Scope
| MAIN | |
| Sensor | 384×288px @ 17µm |
| Objective Lens | 35 mm / F1.0 |
| Detection Range (Human 1.8 x 0.5m) | 1235 m |
| Magnification (Optical) | 2.14x |
| SENSOR | |
| Type | Uncooled Focal Plane Arrays |
| Resolution, pixels | 384 x 288 px |
| Pixel pitch, µm | 17µm |
| Frame rate, Hz | 50 Hz |
| NETD | <35mK |
| OPTICS | |
| Objective lens | F1.0 |
| Magnification (Optical) | 2.14 x |
| Magnification (Digital) | 1x, 2x, 4x, 8x |
| Field of view | 10.0° × 8° |
| Recoil Resistance | 750G/ms = 6750 J |
| DISPLAY | |
| Type | 9.9mm, LCOS |
| Resolution, Pixels | 1024 × 768 |
| Eye Relief | 45mm |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Picture-in-Picture | Yes |
| RETICLE OPTIONS | |
| Number of preloaded reticles | 5 Reticle choices |
| Reticle Colours | White, Green, Red |
| VIDEO RECORDER | |
| Video recording | Yes |
| Picture snapshot | Yes |
| Build in memory, Gb | 16 Gb |
| ADDITIONAL FEATURES | |
| Hot Tracking | YES |
| WiFI hot spot | YES |
| T-Vision App support | YES |
| ENVIRONMENTAL | |
| Degree of protection, IP code | IPX7 |
| Water protection | Protected against temporary submersion in water |
| Operating temperature range | -20 °C to 55 °C |
| WEIGHT & SIZE | |
| Dimensions, mm | 187.2 mm × 62.5 mm × 59.2 mm |
| Weight, kg | 0.41 kg |
| POWER SUPPLY | |
| Operating time on battery (WiFi & Hot tracking disabled) |
4.5 Hours continuous running |
| Charging interface | USB-C |
| Battery type | Replaceable CR123A |
| WARRANTY PERIOD Main Unit Battery |
3 Years 2 Years |
HIK Micro Thunder 35mm 35mK Smart Thermal Weapon Scope
HIK VISION THERMAL SENSOR
At the heart of the Thunder is the HIK Vision 384x288px, 17µm thermal sensor (NETD Rating = 35mK).
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
This combines with the large, 35mm objective lens and focus system to achieve a crystal clear image and enhanced detection distances.
Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-Vision App: Connect – Control – Stream
Connect your smartphone and take control of all features of the Thunder.
The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.
You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.
Hot Track
Activate Hot Tracking and your Thunder will highlight the hottest spot detected in the current frame with a green crosshair.
This is useful to highlight small heat sources as you scan around.
This feature can also be deactivated in the menu or controlled in the App.
HIK Micro Thunder 35mm 35mK Smart Thermal Weapon Scope
- HIK Micro Thunder Thermal Weapon Scope
- HIK Micro Thunder Thermal Weapon Scope Eyepiece
- Picatinny Rail System
- CR123A Batteries
- USB-C Cable
- Storage Bag
HIK Micro Thunder 35mm 35mK Smart Thermal Weapon Scope
UK 3 Year Manufacturers Warranty from time of purchase.
