SiOnyx Nightwave Marine Navigational Camera
- <1 millilux moonless starlight night vision
- 44-degree field of view
- Rugged and water-resistant (IP67 rated)
- Connect directly to a major brand MFD
- Flexible installation Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware Temporarily mount with a 1/4"-20 mount interface for use with standard mounts
- Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware
- Temporarily mount with a 1/4"-20 mount interface for use with standard mounts
- 12Vdc power (fused)
- NTSC/PAL Analog video connection (SMA, BNC, or RCA)
- Manual vertical tilt adjustment
- Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware
- Temporarily mount with a 1/4"-20 mount interface for use with standard mounts
Nightwave is an ultra low-light marine camera built around SIONYX’s patented Black Silicon BSI CMOS sensor. It allows all levels of mariners to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras – navigating safely, avoiding collisions, and maximizing time on the water.
Featuring <1 millilux moonless starlight sensitivity, with Nightwave you will see well beyond human eyesight and detect man-sized objects at 150 meters. The 44º field of view increases situational awareness so you can spot unexpected markers, vessels, land formations and more. IP67 rated, submersible to 3 ft for 30 minutes, you can safely use Nightwave in inclement weather conditions.
With flexible mounting options and easy setup, Nightwave can seamlessly integrate with major brand MFDs via the analog video output, displaying clear color digital night vision.
Camera
- Sensor type: XQE1350 BSI CMOS
- Resolution: 1280x1024
- Frame Rate: 60 Hz
- Horizontal FOV: 44°
- Visible Spectrum: 400-1200nm
- Focus Range: 10m to infinity
- Lens: 16mm F/1.4
System
- Video Out: NTSC
- Video Connection: SMA/BNC/RCA
- Wireless Communications: WiFi + Bluetooth
- Power In: 12v DC
- Power Connection: Tinned Copper Wire
Environmental
- Ingress Protection: IP67 water/dust resistant
- Shock & Vibration: IEC60945 [V15G | H:9G] | IK08
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -20°C to +80°C
- Range Performance
- Detect man-sized object: 150m
Physical
- Weight: 870g

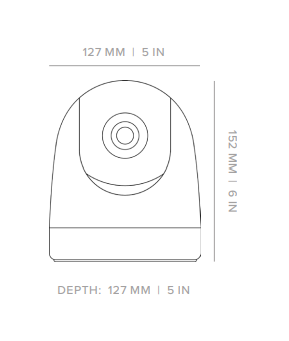

- Dimensions: 127x127x152 mm
- Mounting Options: Tripod or railmount, single 1/4" 20 centre mount, bulkhead mount: 4x M6 blind holes, Top-down mounting holes
- Material: UV-resistant polycarbonate
- <1 millilux moonless starlight night vision
- 44-degree field of view
- Rugged and water-resistant (IP67 rated)
- Connect directly to a major brand MFD
- Flexible installation
- Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware
- Temporarily mount with a 1/4"-20 mount interface for use with standard mounts
- 12Vdc power (fused)
- NTSC/PAL Analog video connection (SMA, BNC, or RCA)
- Manual vertical tilt adjustment
- SIONYX Nightwave Ultra Low-Light Marine Camera (CRV-500C)
- Power/Video Cable
- BNC to RCA adapter
- 2A inline fuse
- Removable Mounting Base
- Mounting Hardware
- Mounting Gasket
- Mounting Template
