Vortex Diamondback Tactical 4-12x40 SFP VMR-1 MOA Rifle Scope
Vortex Diamondback Tactical 4-12x40 SFP VMR-1 MOA Rifle Scope

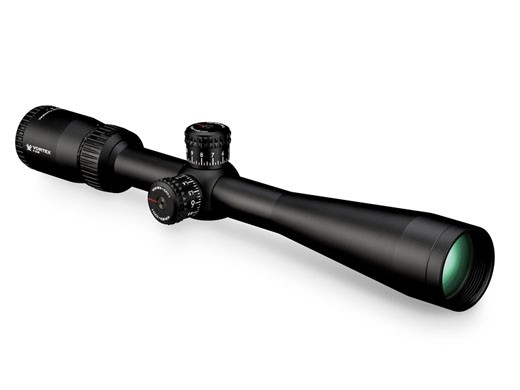

The Vortex Diamondback Tactical 4-12×40 SFP VMR-1 MOA Rifle Scope features exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise—we mean it. The turrets of the Vortex Diamondback Tactical 4-12×40 track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.
Dual use for Shooting Tactical / Hunting
Vortex Diamondback Tactical 4-12x40 SFP VMR-1 MOA Rifle Scope
|
Magnification |
4-12 x |
|
Objective Lens Diameter |
40 mm |
|
Eye Relief |
3.8 inches |
|
Field of View |
23.6-7.9 feet/100 yards |
|
Tube Size |
1 Inch |
|
Turret Style |
Tactical |
|
Adjustment Graduation |
1/4 MOA |
|
Travel per Rotation |
12 MOA |
|
Max Elevation Adjustment |
70 MOA |
|
Max Windage Adjustment |
70 MOA |
|
Parallax Setting |
100 yards |
|
Length |
14.2 inches |
|
Weight |
16.2 ounces |
|
Product Manual (PDF) |
|
|
Product Manual 2 (PDF) |
Vortex Diamondback Tactical 4-12x40 SFP VMR-1 MOA Rifle Scope
OPTICAL FEATURES |
|
| XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and colour fidelity, resulting in crisp, sharp images. |
| XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
CONSTRUCTION FEATURES |
|
| Tube Size | 1-inch diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminium for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard-Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter’s position. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Exposed Tactical Turrets | The Diamondback® Tactical scopes feature tactical windage and elevation turrets with Zero-Reset making adjustments back to zero easy and quick. |
INTERNAL MECHANISM DESIGN FEATURES |
|
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
CONVENIENCE FEATURES |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Fibre Optic Radius Bar | The patented fibre optic Radius Bar visually assists in tracking turret rotations. |
| Magnification Rib | The raised rib on the magnification ring facilitates fast magnification changes in the heat of action. |
Designed to maximize long-distance shooting and ranging abilities, the VMR-1 MOA reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads.
Subtension detail for the Diamondback Tactical 4-12×40 with VMR-1 reticle.>
Read the VMR-1 Reticle manual for details on using the reticle for bullet drop compensation and wind drift compensation and ranging.
- Lens Covers
- Lens Cloth
- Tools
