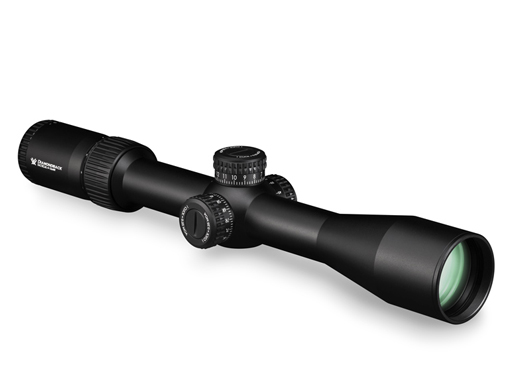

Vortex Diamondback Tactical 4-16x44 FFP EBR-2C MRAD Non IR Rifle Scope
Vortex Diamondback Tactical 4-16x44 FFP EBR-2C MRAD Non IR Rifle Scope
The Vortex Diamondback Tactical 4-16x44 FFP EBR-2C MRAD Non-Illuminated Rifle Scope is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts.
Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000-yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun.
Opt for one of the first focal plane models on a sweet-shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.
Vortex Diamondback Tactical 4-16x44 FFP EBR-2C MRAD Non IR Rifle Scope Specifications
| Magnification | 4-16 x |
| Objective Lens Diameter | 44 mm |
| Eye Relief | 3.8 inches |
| Field of View | 26.9-6.7 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Tall Exposed Tactical |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 15 MOA |
| Max Elevation Adjustment | 85 MOA |
| Max Windage Adjustment | 85 MOA |
| Parallax Setting | 20 yards to Infinity |
| Length | 14 inches |
| Weight | 23.1 ounces |
| Product Manual (PDF) | Download |
| Product Manual 2 (PDF) | Download |
| LENGTHS | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14 | 2.25 | 2.7 | 6.5 | 3.83 | 3.75 |
| HEIGHTS | |
| H1 | H2 |
| 2.01 | 1.73 |
Vortex Diamondback Tactical 4-16x44 FFP EBR-2C MRAD Non IR Rifle Scope Features
OPTICAL FEATURES |
|
| XDâ„¢ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| Fully Multi Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| First Focal Plane | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
CONSTRUCTION FEATURES |
|
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
| Nitrogen Gas Purged | Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Exposed Tactical Turrets | The Diamondback® Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick. |
INTERNAL MECHANISM DESIGN FEATURES |
|
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Precision-force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
CONVENIENCE FEATURES |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Magnification Rib | The raised rib on the magnification ring facilitates fast magnification changes in the heat of action. |
EBR-2C (MRAD) RETICLE
- Lens Covers
- Lens Cloth
- Sunshade
- Vortex VIP Lifetime Warranty
