Element Optics Nexus 5-20x50 FFP Illuminated EHR-1C MOA Rifle Scope
- 30mm Main Body Tube
- Compact, Lightweight design

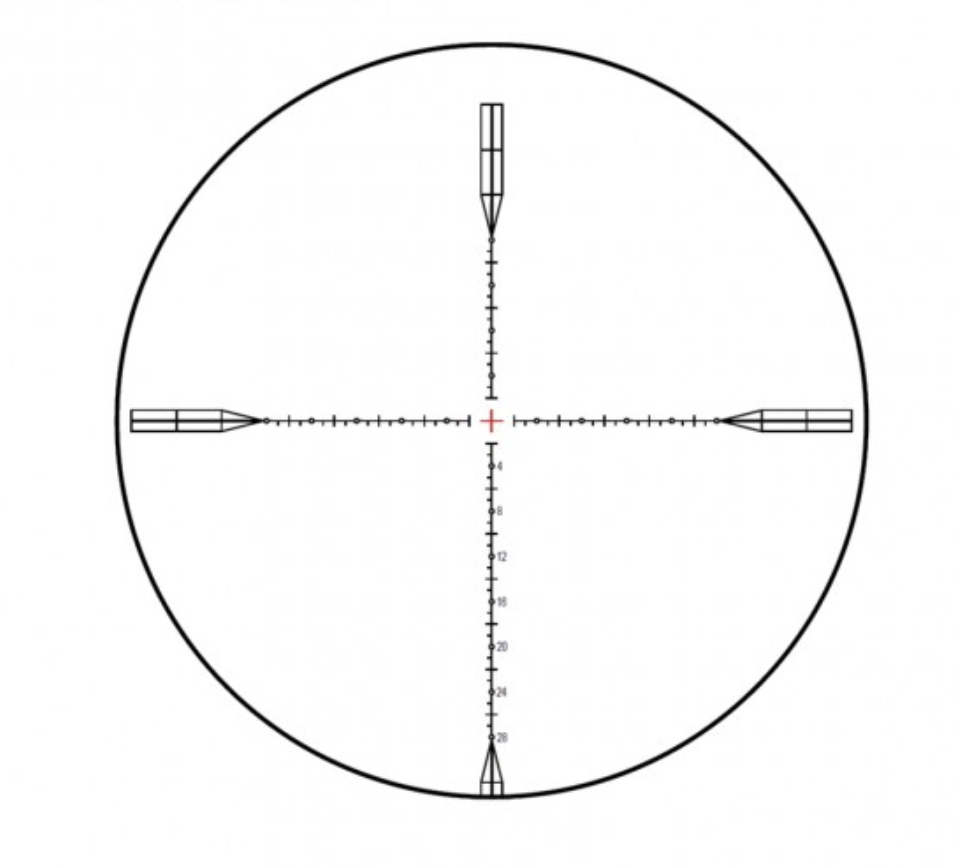

- Illuminated, First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Neoprene Cover included
Element Optics Nexus 5-20x50 Ffp EHR-1C MOA
The word NEXUS means focal point, and that is what this model is to the ELEMENT OPTICS range. The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope.
A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Element Optics design team of global competition winners & hunters understands optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions.
Theres a reason for the price tag: Element Optics have held nothing back, selecting only the very best materials, engineering teams, assembly procedures and technical inspections and youll realize that the moment you pick it up. Need something that ticks all the boxes? Look no further than our flagship, the NEXUS.
| MAGNIFICATION RANGE | 5-20x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8-2.5mm |
| EYE RELIEF | 77-93mm |
| FIELD OF VIEW | @100yds: 23.3-5.8 ft | @100m: 7.8-1.9m |
| CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 80 MOA | 23.2 MRAD |
| WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |
| LENGTH | 13.8” | 350mm |
| WEIGHT | 28oz | 794gr |
Element Optics Nexus 5-20x50 Ffp EHR-1C MOA
- 30mm Main Body Tube
- Compact, Lightweight design
- Illuminated, First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Neoprene Cover included
